SMB Builder#
To facilitate the setup of SMB models, an SMBBuilder
is provided which automatically configures a CarouselBuilder
as a 4-Zone SMB.
For it to work, it requires fully configured eluent and feed Inlets
, as well as a column object.
To demonstrate this, consider the following component system, isotherm, and column model:
Show code cell source
from CADETProcess.processModel import ComponentSystem
from CADETProcess.processModel import Linear
from CADETProcess.processModel import Inlet, LumpedRateModelWithPores
# Component System
component_system = ComponentSystem(['A', 'B'])
# Binding Model
binding_model = Linear(component_system)
binding_model.is_kinetic = True
binding_model.adsorption_rate = [2, 3]
binding_model.desorption_rate = [1, 1]
# Column
column = LumpedRateModelWithPores(component_system, name='column')
column.binding_model = binding_model
column.length = 0.6
column.diameter = 0.025
column.bed_porosity = 0.4
column.particle_porosity = 0.7
column.particle_radius = 5.0e-6
column.film_diffusion = component_system.n_comp*[1e-5]
column.axial_dispersion = 1e-8
eluent = Inlet(component_system, name='eluent')
eluent.c = [0, 0]
eluent.flow_rate = 7e-7
feed = Inlet(component_system, name='feed')
feed.c = [10, 10]
feed.flow_rate = 4e-7
These objects are now passed to the SMBBuilder
, which inherits from CarouselBuilder
.
Consequently, switch time and output states can be specified as before.
Note, that the names of the automatically generated zones are: zone_I
zone_II
zone_III
zone_IV
.
from CADETProcess.modelBuilder import SMBBuilder
smb_builder = SMBBuilder(feed, eluent, column)
smb_builder.switch_time = 100
w_e = 0.14
smb_builder.set_output_state('zone_I', [w_e, 1-w_e])
w_r = 0.13
smb_builder.set_output_state('zone_III', [w_r, 1-w_r])
Again, the Process
needs to be built before simulation.
process = smb_builder.build_process()
from CADETProcess.simulator import Cadet
process_simulator = Cadet()
process_simulator.n_cycles = 3
simulation_results = process_simulator.simulate(process)

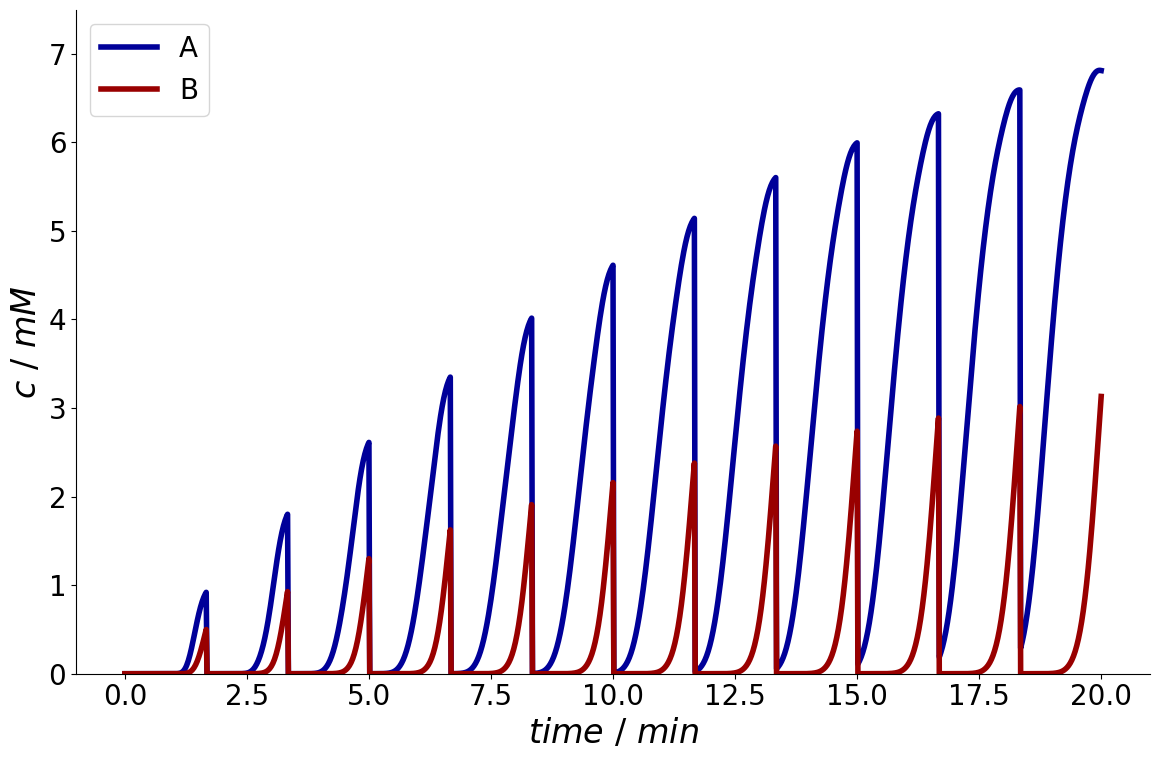

_ = simulation_results.solution.raffinate.inlet.plot()
_ = simulation_results.solution.extract.inlet.plot()
SMB Design#
Warning
This functionality is still work in progress. Changes in the interface are to be expected.
Several shortcut methods exist for the design of SMB systems. Most famously, the so-called triangle theory can be used to determine flow rates of the individual zones.
However, these methods highly depend on the adsorption behaviour of the components.
In CADET-Process, design methods for two-component Linear
and Langmuir
models are provided.
For this purpose, specialized SMBBuilder
classes need to be used.
Considering the same parameters as above, a LinearSMBBuilder
needs to be imported.
The triangle_design()
method returns the values for Q_feed
, Q_eluent
, w_r
, and w_e
.
By default, these values are also set automatically in the SMB builder.
from CADETProcess.modelBuilder import LinearSMBBuilder
smb_builder = LinearSMBBuilder(feed, eluent, column)
smb_builder.switch_time = 100
Q_feed, Q_eluent, w_r, w_e = smb_builder.triangle_design()
print(Q_feed, Q_eluent, w_r, w_e)
5.301437602932773e-07 5.301437602932773e-07 0.13235294117647053 0.13235294117647053
/home/docs/checkouts/readthedocs.org/user_builds/cadet-process/conda/latest/lib/python3.11/site-packages/CADETProcess/modelBuilder/carouselBuilder.py:908: UserWarning: Isotherm uses kinetic binding, however, triangle theory assumes instant equilibrium.
warnings.warn(
To account for non-idealities, such as axial dispersion or adsorption kinetics, a safety factor gamma
can also be provided which moves the operating point from the theoretical optimum towards the middle of the triangle, ensuring the purity of the products.
Q_feed, Q_eluent, w_r, w_e = smb_builder.triangle_design(gamma=1.05)
print(Q_feed, Q_eluent, w_r, w_e)
4.013945613649104e-07 6.601552062699625e-07 0.12847965738758033 0.13626532083633752

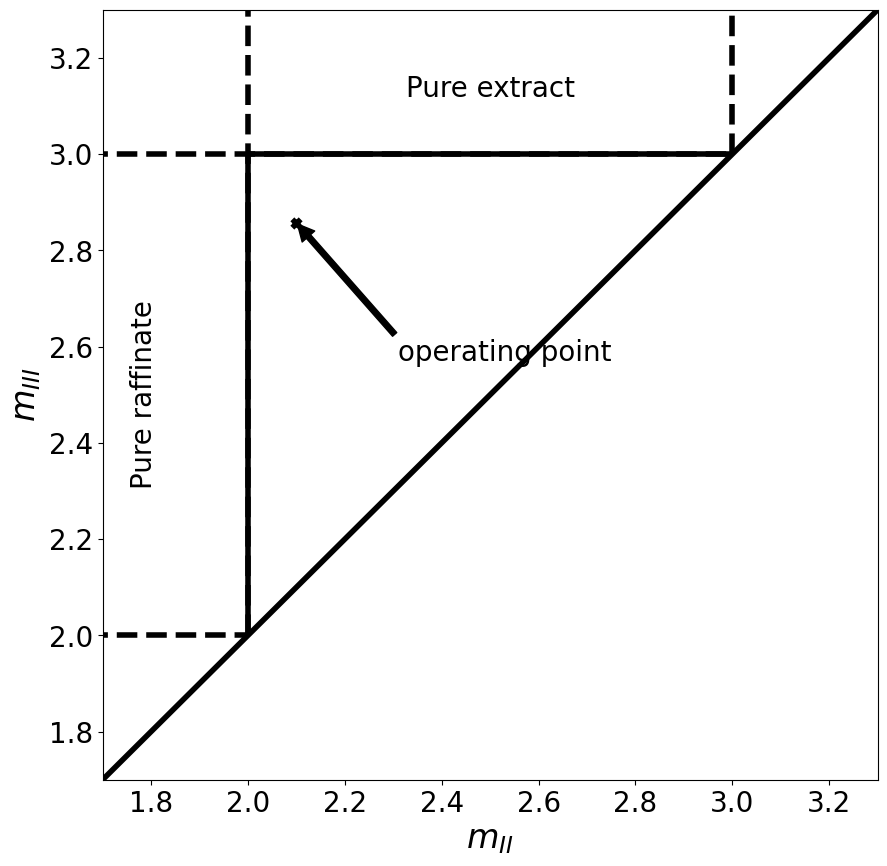

Moreover, the triangle region can also be plotted.
_ = smb_builder.plot_triangle(gamma=1.05)
Running the simulation is equivalent to before.
process = smb_builder.build_process()
from CADETProcess.simulator import Cadet
process_simulator = Cadet()
process_simulator.n_cycles = 3
simulation_results = process_simulator.simulate(process)

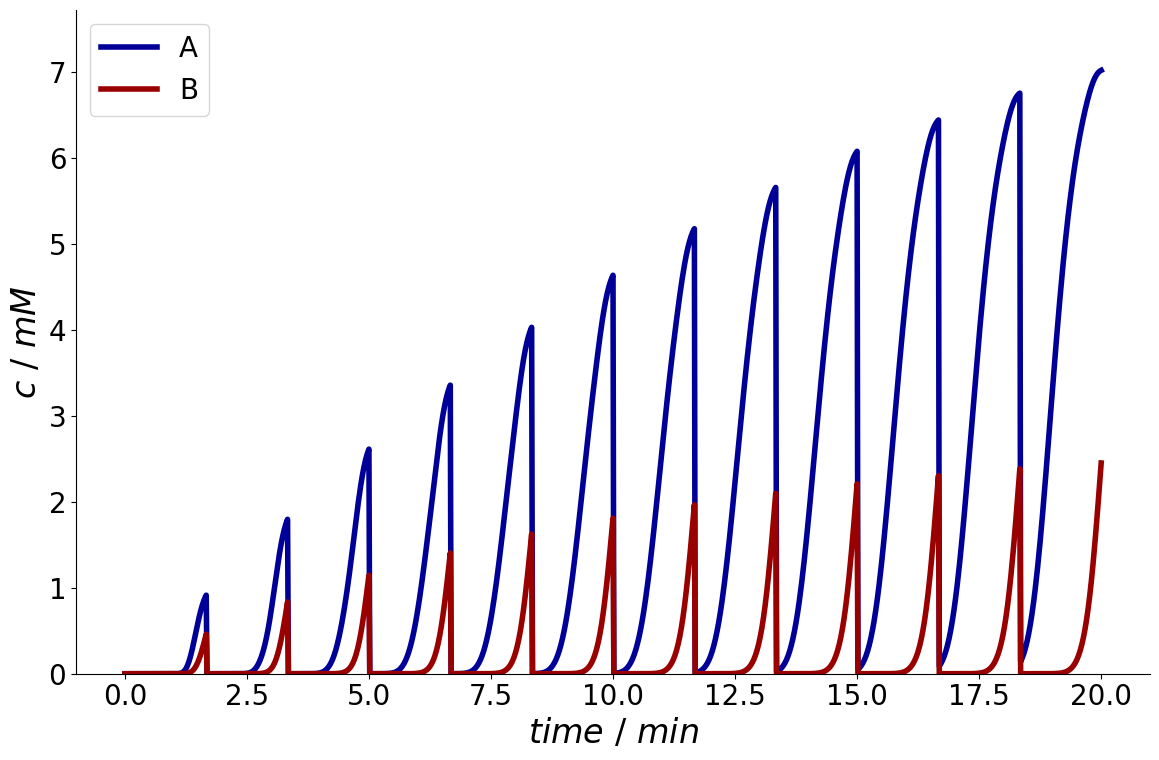

_ = simulation_results.solution.raffinate.inlet.plot()

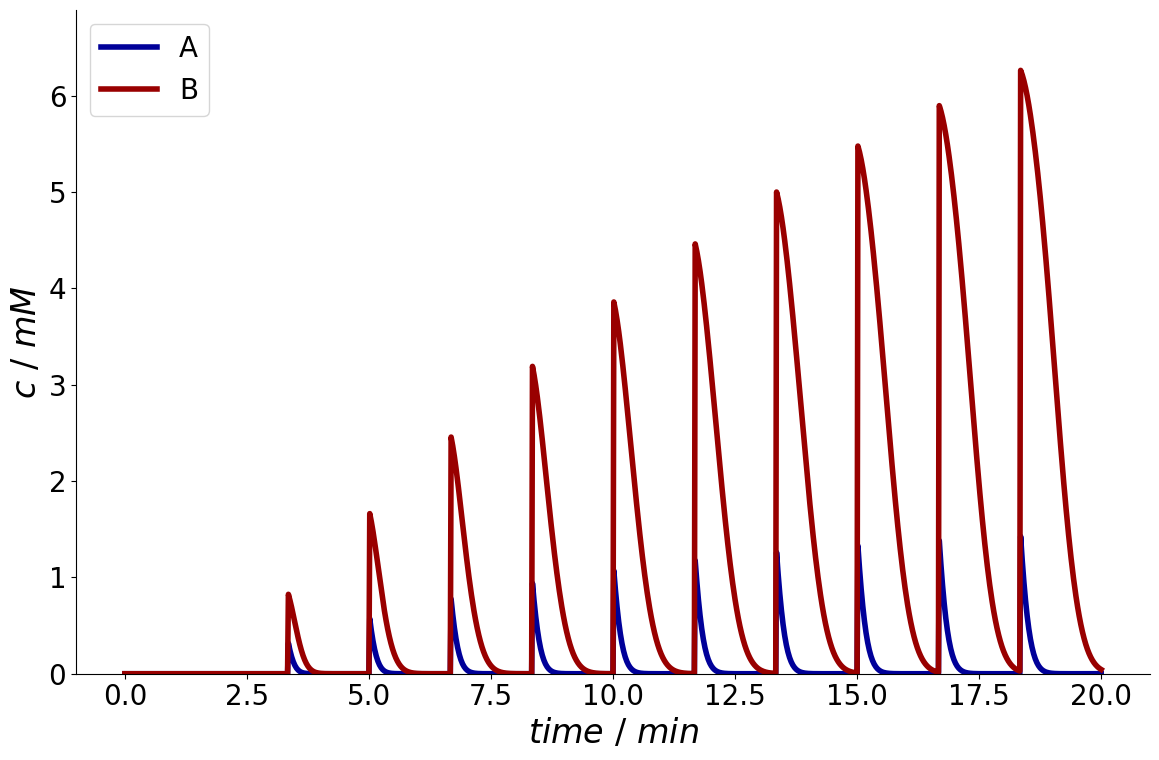

_ = simulation_results.solution.extract.inlet.plot()
