Carousel Builder

For many applications, the use of multiple columns can improve process performance when compared with conventional batch elution processes. Next to the well known simulated moving bed (SMB) many other operating modes exist which extend the use of multiple columns, e.g. Varicol, or PowerFeed processes and gradient operations [9].

In all of the aforementioned processes, multiple chromatographic columns are mounted to a rotating column carousel and a central multiport switching valve distributes in- and outgoing streams to and from the columns. After a given time, the column positions are moved to the next position in the carousel. In this process, the columns pass through different zones which serve different purposes.

For example, in a classical SMB, four zones are present (see Figure below)

• Zone I: Elution of the strongly adsorbing component

• Zone II: Elution of the weakly adsorbing component

• Zone III: Adsorption of the strongly adsorbing component

• Zone IV : Adsorption of the weakly adsorbing component

Moreover, four in- and outlets are connected to the zones:

• Feed: Inlet containing the components to be separated

• Eluent: Inlet with elution buffer

• Extract: Outlet containing the strongly adsorbing component

• Raffinate: Outlet containing the weakly adsorbing component

To facilitate the configuration of complex SMB, carousel, or other multi column systems systems, a CarouselBuilder was implemented in CADET-Process It allows a straight-forward configuration of the zones and returns a fully configured Process object including all internal connections, as well as switching events.

Here are some of the features:

• Any number of inlets and outlets or other peripheral units.

• Any number of zones

• Any number of columns per zone.

• Different column connectivity within the zones:

  • Serial

  • Parallel

• Different connectivity between zones:

  • Directly connected zones

  • Skip zones

  • Mix and split in- and outgoing streams

  • Allow for different flow direction in every zone.

• Any number of side streams

SMB Process

To demonstrate the tool, consider a standard SMB process.

Standard SMB system

Before configuring the zones, the binding and column models are configured. The column is later used as a template for all columns in the system.

from CADETProcess.processModel import ComponentSystem
from CADETProcess.processModel import Linear
from CADETProcess.processModel import Inlet, LumpedRateModelWithPores, Outlet

# Component System
component_system = ComponentSystem(['A', 'B'])

# Binding Model
binding_model = Linear(component_system)
binding_model.is_kinetic = True
binding_model.adsorption_rate = [2, 3]
binding_model.desorption_rate = [1, 1]

# Column
column = LumpedRateModelWithPores(component_system, name='column')
column.binding_model = binding_model

column.length = 0.6
column.diameter = 0.025
column.bed_porosity = 0.4

column.particle_porosity = 0.7
column.particle_radius = 5.0e-6
column.film_diffusion = component_system.n_comp*[1e-5]

column.axial_dispersion = 1e-8

Now, the Inlets and Outlets of the system are configured:

eluent = Inlet(component_system, name='eluent')
eluent.c = [0, 0]
eluent.flow_rate = 7e-7

feed = Inlet(component_system, name='feed')
feed.c = [10, 10]
feed.flow_rate = 4e-7

extract = Outlet(component_system, name='extract')
raffinate = Outlet(component_system, name='raffinate')

To allow more complicated systems, CADET-Process provides two options for configuring zones, a SerialZone and a ParallelZone. For both, the number of columns in the zone needs to be specified. Since here all the zones only consist of one column, either can be used.

from CADETProcess.modelBuilder import SerialZone, ParallelZone

zone_I = SerialZone(component_system, 'zone_I', 1)
zone_II = SerialZone(component_system, 'zone_II', 1)
zone_III = SerialZone(component_system, 'zone_III', 1)
zone_IV = SerialZone(component_system, 'zone_IV', 1)

The CarouselBuilder can now be used like a regular FlowSheet where the zones are conceptually used like other UnitOperations. After initializing the CarouselBuilder, the column template is assigned and all units and zones are added.

from CADETProcess.modelBuilder import CarouselBuilder

builder = CarouselBuilder(component_system, 'smb')
builder.column = column
builder.add_unit(eluent)
builder.add_unit(feed)

builder.add_unit(extract)
builder.add_unit(raffinate)

builder.add_unit(zone_I)
builder.add_unit(zone_II)
builder.add_unit(zone_III)
builder.add_unit(zone_IV)

Now, the connections are added to the builder. To define split streams, the output_state is used which sets the ratio between outgoing streams of a unit operation in the flow sheet.

builder.add_connection(eluent, zone_I)

builder.add_connection(zone_I, extract)
builder.add_connection(zone_I, zone_II)
w_e = 0.14
builder.set_output_state(zone_I, [w_e, 1-w_e])

builder.add_connection(zone_II, zone_III)

builder.add_connection(feed, zone_III)

builder.add_connection(zone_III, raffinate)
builder.add_connection(zone_III, zone_IV)
w_r = 0.13
builder.set_output_state(zone_III, [w_r, 1-w_r])

builder.add_connection(zone_IV, zone_I)

Now, the switch time is assigned to the builder which determines after how much time a column is switched to the next position. By calling the build_process() method, a regular Process object is constructed which can be simulated just as usual using CADET. It contains the assembled flow sheet with all columns, as well as the events required for simulation.

builder.switch_time = 100
process = builder.build_process()

Since multi column systems often exhibit a transient startup behavior, it might be useful to simulate multiple cycles until cyclic stationarity is reached (see Cyclic Stationarity). Because this simulation is computationally expensive, only a few simulations are run for the documentation. Please run this simulation locally to see the full results.

from CADETProcess.simulator import Cadet

process_simulator = Cadet()
# process_simulator.evaluate_stationarity = True
process_simulator.n_cycles = 3

simulation_results = process_simulator.simulate(process)

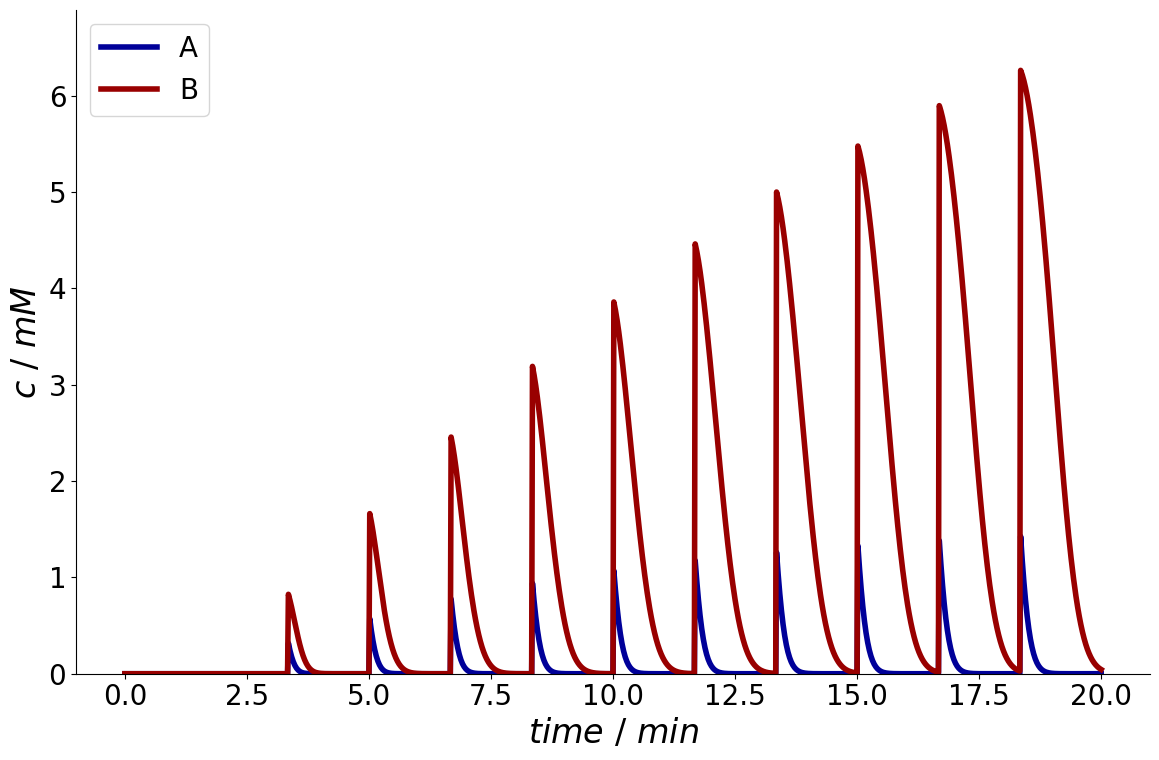

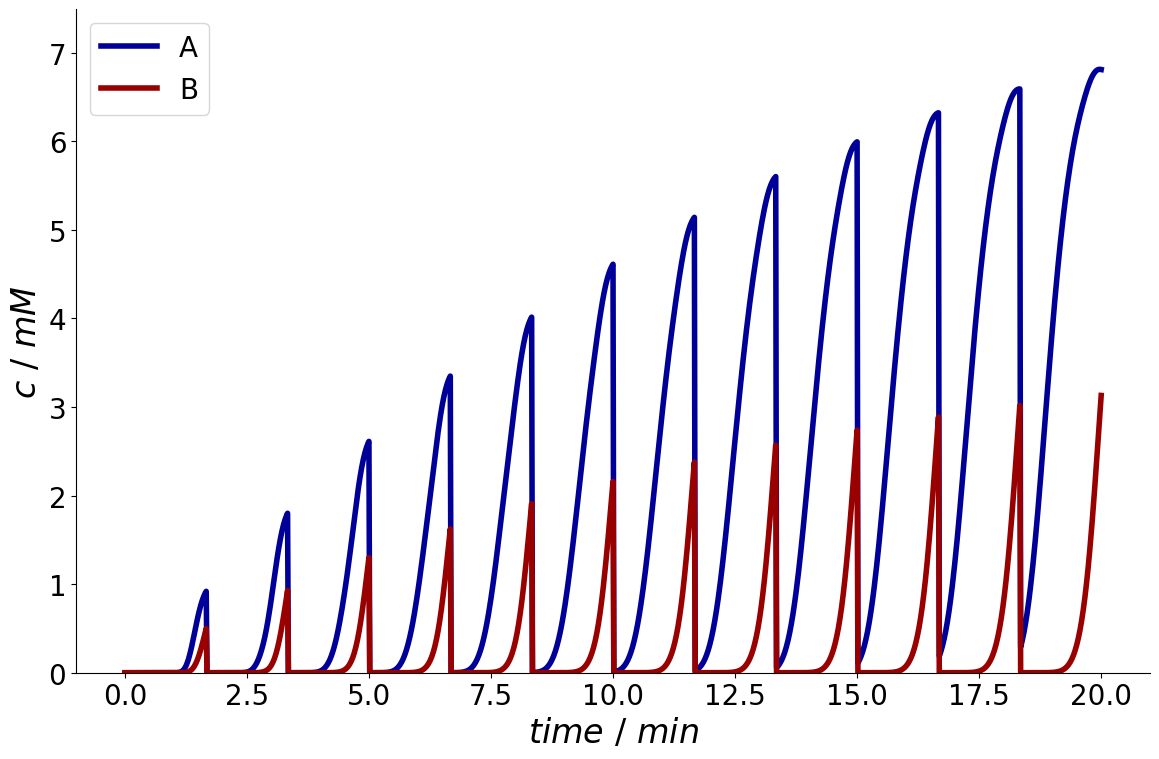

The results can now be plotted. For example, this is how the concentration profiles of the raffinate and extract outlets are plotted:

_ = simulation_results.solution.raffinate.inlet.plot()
_ = simulation_results.solution.extract.inlet.plot()

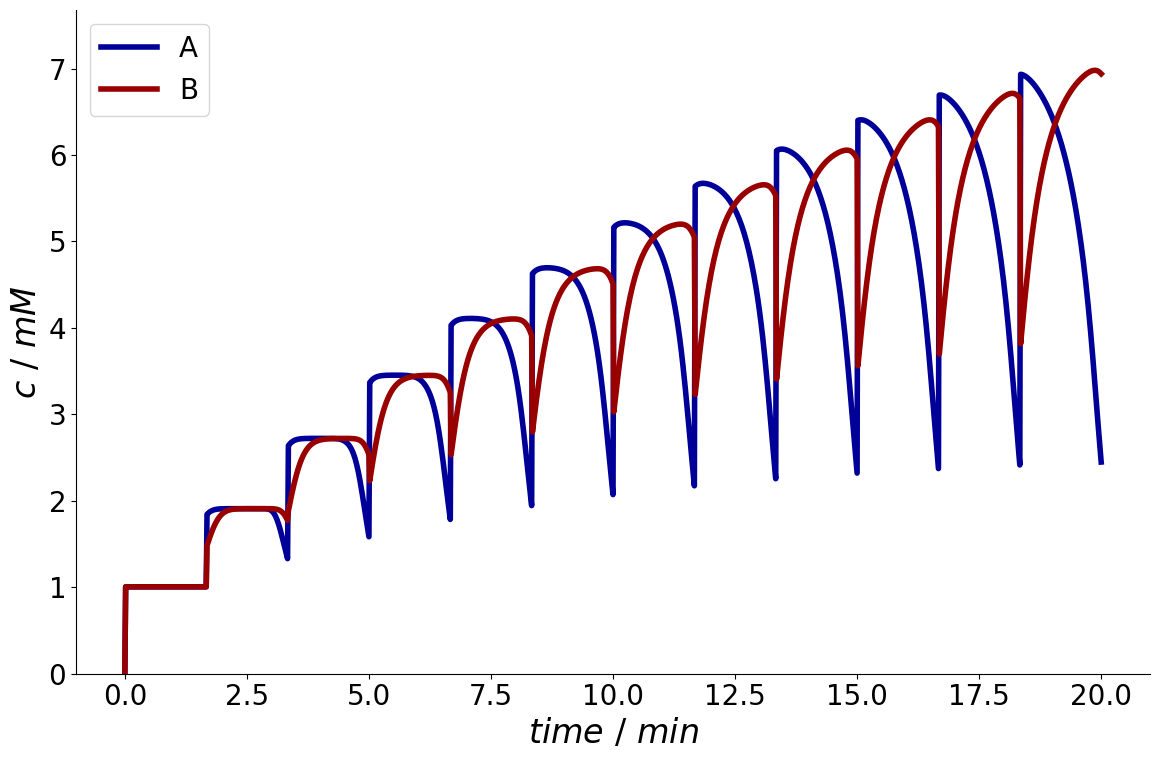

It is important to note that for the purpose of simplifying the implementation, each Zone internally has an inlet and an outlet which are modelled using a Cstr with a very small volume. The concentration of these in and outlets can also be plotted. These units get a _inlet and _outlet suffix. For example, this is the concentration of the inlet of zone III:

_ = simulation_results.solution.zone_III_inlet.outlet.plot()

Carousel System

Here, another multi column system is considered.

Carousel system with 4 zones.

There exist four zones in this system:

• Wash: 3 columns in series

• Feed: 3 columns in parallel

• Dilute: 2 columns in series; reverse flow

• Elute: 2 Columns in series

First, the inlets and outlets of the system are configured:

from CADETProcess.processModel import Inlet, Outlet
i_wash = Inlet(component_system, name='i_wash')
i_wash.c = [0, 0]
i_wash.flow_rate = 60/60/1e6
i_feed = Inlet(component_system, name='i_feed')
i_feed.c = [10, 10]
i_feed.flow_rate = 30/60/1e6
i_elute = Inlet(component_system, name='i_elute')
i_elute.c = [0, 0]
i_elute.flow_rate = 60/60/1e6

o_waste = Outlet(component_system, name='o_waste')
o_product = Outlet(component_system, name='o_product')

Now the zones are set up and the reverse flow is set in the dilution zone.

from CADETProcess.modelBuilder import SerialZone, ParallelZone

z_wash = SerialZone(component_system, 'z_wash', 3)
z_feed = ParallelZone(component_system, 'z_feed', 3)
z_dilute = SerialZone(component_system, 'z_dilute', 2, flow_direction=-1)
z_elute = SerialZone(component_system, 'z_elute', 2)

As in the previous example, the units and zones are added and connected in the CarouselBuilder

from CADETProcess.modelBuilder import CarouselBuilder

builder = CarouselBuilder(component_system, 'multi_zone')
builder.column = column
builder.add_unit(i_wash)
builder.add_unit(i_feed)
builder.add_unit(i_elute)

builder.add_unit(o_waste)
builder.add_unit(o_product)

builder.add_unit(z_wash)
builder.add_unit(z_feed)
builder.add_unit(z_dilute)
builder.add_unit(z_elute)

builder.add_connection(i_wash, z_wash)
builder.add_connection(z_wash, z_dilute)
builder.add_connection(i_feed, z_feed)
builder.add_connection(z_feed, z_dilute)
builder.add_connection(z_dilute, o_waste)
builder.add_connection(z_dilute, z_elute)
builder.set_output_state(z_dilute, [0.5, 0.5])
builder.add_connection(i_elute, z_elute)
builder.add_connection(z_elute, o_product)
